#include <SidConfig.h>

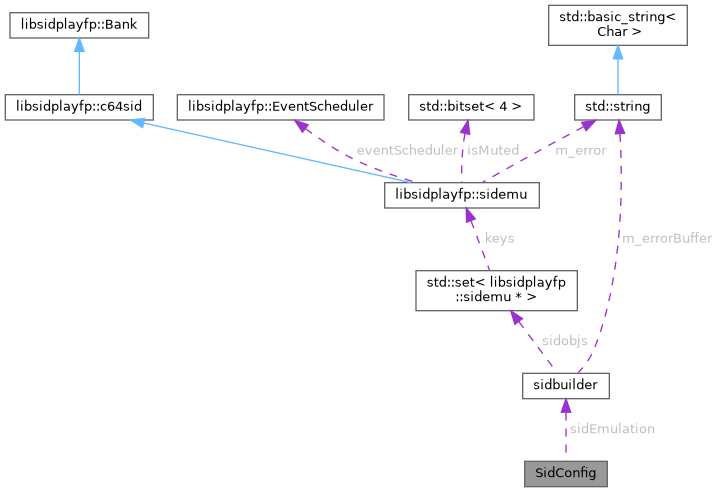

Collaboration diagram for SidConfig:

[legend]

Public Types
enum	playback_t { MONO = 1 , STEREO }
	Playback mode. More...

enum	sid_model_t { MOS6581 , MOS8580 }
	SID chip model. More...

enum	sid_cw_t { AVERAGE , WEAK , STRONG }
	SID combined waveforms strength.

enum	cia_model_t { MOS6526 , MOS8521 , MOS6526W4485 }
	CIA chip model. More...

enum	c64_model_t { PAL , NTSC , OLD_NTSC , DREAN , PAL_M }
	C64 model. More...

enum	sampling_method_t { INTERPOLATE , RESAMPLE_INTERPOLATE }
	Sampling method. More...

Public Member Functions
bool	compare (const SidConfig &config)

Public Attributes
c64_model_t	defaultC64Model

bool	forceC64Model

sid_model_t	defaultSidModel

bool	forceSidModel

bool	digiBoost

cia_model_t	ciaModel

playback_t	playback

uint_least32_t	frequency

uint_least16_t	secondSidAddress

uint_least16_t	thirdSidAddress

sidbuilder *	sidEmulation

uint_least32_t	leftVolume

uint_least32_t	rightVolume

uint_least16_t	powerOnDelay

sampling_method_t	samplingMethod

bool	fastSampling

Static Public Attributes
static const uint_least16_t	MAX_POWER_ON_DELAY = 0x1FFF

static const uint_least16_t	DEFAULT_POWER_ON_DELAY = MAX_POWER_ON_DELAY + 1

static const uint_least32_t	DEFAULT_SAMPLING_FREQ = 44100

Detailed Description

SidConfig

An instance of this class is used to transport emulator settings to and from the interface class.

Examples: demo.cpp.

Member Enumeration Documentation

◆ c64_model_t

enum SidConfig::c64_model_t

C64 model.

Enumerator
PAL	European PAL model (MOS 6569)
NTSC	American/Japanese NTSC model (MOS 6567 R8)
OLD_NTSC	Older NTSC model with different video chip revision (MOS 6567 R56A)
DREAN	Argentinian PAL-N model (MOS 6572)
PAL_M	Brasilian PAL-M model (MOS 6573)

◆ cia_model_t

enum SidConfig::cia_model_t

CIA chip model.

Enumerator

MOS6526

Old CIA with interrupts delayed by one cycle (MOS 6526/6526A)

MOS8521

New CIA (CSG 8521/MOS 6526 216A)

MOS6526W4485

Old CIA, peculiar batch with different serial port behavior (MOS 6526 4485)

Since: 2.2

◆ playback_t

enum SidConfig::playback_t

Playback mode.

Enumerator
MONO	One channel mono playback.
STEREO	Two channels stereo playback.

◆ sampling_method_t

enum SidConfig::sampling_method_t

Sampling method.

Enumerator
INTERPOLATE	Interpolation.
RESAMPLE_INTERPOLATE	Resampling.

◆ sid_model_t

enum SidConfig::sid_model_t

SID chip model.

Enumerator
MOS6581	Old SID (MOS 6581)
MOS8580	New SID (CSG 8580/MOS 6582)

Member Function Documentation

◆ compare()

bool SidConfig::compare ( const SidConfig & config )

Compare two config objects.

Returns: true if different

Member Data Documentation

◆ ciaModel

cia_model_t SidConfig::ciaModel

Intended cia model.

◆ defaultC64Model

c64_model_t SidConfig::defaultC64Model

Intended c64 model when unknown or forced.

◆ defaultSidModel

sid_model_t SidConfig::defaultSidModel

Intended sid model when unknown or forced.

◆ digiBoost

bool SidConfig::digiBoost

Enable digiboost when 8580 SID model is used.

◆ fastSampling

bool SidConfig::fastSampling

Faster low-quality emulation, available only for reSID.

Examples: demo.cpp.

◆ forceC64Model

bool SidConfig::forceC64Model

Force the model to defaultC64Model ignoring tune's clock setting.

◆ forceSidModel

bool SidConfig::forceSidModel

Force the sid model to defaultSidModel.

◆ frequency

uint_least32_t SidConfig::frequency

Sampling frequency.

Examples: demo.cpp.

◆ leftVolume

uint_least32_t SidConfig::leftVolume

Left channel volume.

◆ MAX_POWER_ON_DELAY

const uint_least16_t SidConfig::MAX_POWER_ON_DELAY = 0x1FFF

static

Maximum power on delay.

Delays <= MAX produce constant results
Delays > MAX produce random results

◆ playback

playback_t SidConfig::playback

Playbak mode.

Examples: demo.cpp.

◆ powerOnDelay

uint_least16_t SidConfig::powerOnDelay

Power on delay cycles.

◆ rightVolume

uint_least32_t SidConfig::rightVolume

Right channel volume.

◆ samplingMethod

sampling_method_t SidConfig::samplingMethod
