libsidplayfp::c64cia2 Class Reference

#include <c64cia.h>

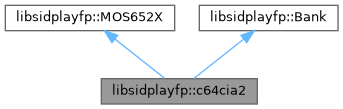

Inheritance diagram for libsidplayfp::c64cia2:

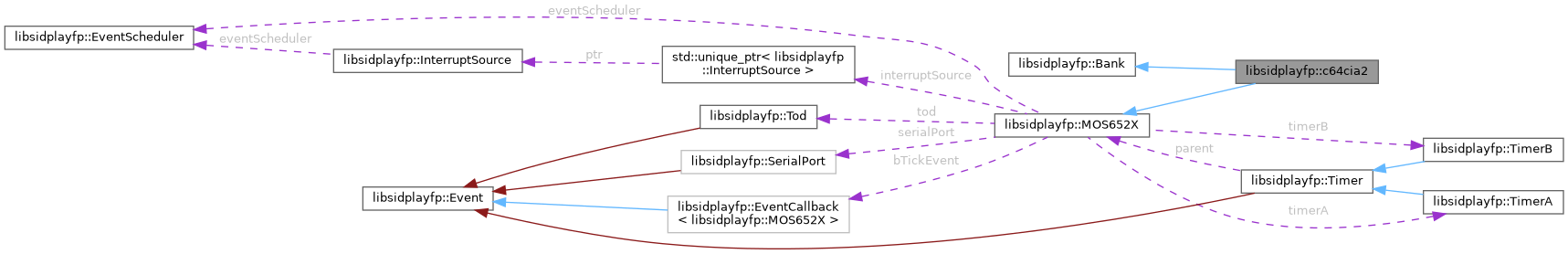

Collaboration diagram for libsidplayfp::c64cia2:

Public Member Functions
	c64cia2 (c64env &env)
void	poke (uint_least16_t address, uint8_t value) override
uint8_t	peek (uint_least16_t address) override
Public Member Functions inherited from libsidplayfp::MOS652X
void	setModel (model_t model)
virtual void	reset ()
void	setDayOfTimeRate (unsigned int clock)

Protected Member Functions
void	interrupt (bool state) override
Protected Member Functions inherited from libsidplayfp::MOS652X
	MOS652X (EventScheduler &scheduler)
virtual void	portA ()
virtual void	portB ()
uint8_t	adjustDataPort (uint8_t data)
uint8_t	read (uint_least8_t addr)
void	write (uint_least8_t addr, uint8_t data)

Additional Inherited Members
Public Types inherited from libsidplayfp::MOS652X
enum class	model_t { MOS6526 = 0 , MOS8521 , MOS6526W4485 }
Static Public Member Functions inherited from libsidplayfp::MOS652X
static const char *	credits ()
Protected Attributes inherited from libsidplayfp::MOS652X
EventScheduler &	eventScheduler
	Event context.
uint8_t &	pra
	Ports.
uint8_t &	prb
uint8_t &	ddra
uint8_t &	ddrb
uint8_t	regs [0x10]
	These are all CIA registers.
TimerA	timerA
	Timers A and B.
TimerB	timerB
std::unique_ptr< InterruptSource >	interruptSource
	Interrupt Source.
Tod	tod
	TOD.
SerialPort	serialPort
	Serial Data Registers.
EventCallback< MOS652X >	bTickEvent
	Events.

Detailed Description

CIA 2

Generates NMIs

Located at $DD00-$DDFF

Member Function Documentation

interrupt()

void libsidplayfp::c64cia2::interrupt ( bool  state )

inlineoverrideprotectedvirtual

Signal interrupt.

Parameters

state

interrupt state

Implements libsidplayfp::MOS652X.

peek()

uint8_t libsidplayfp::c64cia2::peek ( uint_least16_t  address )

inlineoverridevirtual

Bank read. You probably should override this method, except if the Bank is only used in write context.

Parameters

address

value to read from

Returns

value at address

Implements libsidplayfp::Bank.

poke()

void libsidplayfp::c64cia2::poke ( uint_least16_t  address, uint8_t  value  )

inlineoverridevirtual

Bank write.

Override this method if you expect write operations on your bank. Leave unimplemented if it's logically/operationally impossible for writes to ever arrive to bank.

Parameters

address	address to write to
value	value to write

Implements libsidplayfp::Bank.

---

The documentation for this class was generated from the following file:

• c64cia.h
